RACORES PARA PRENSAR PERFILE V DE COBRE Y DE BRONCE

RS8243

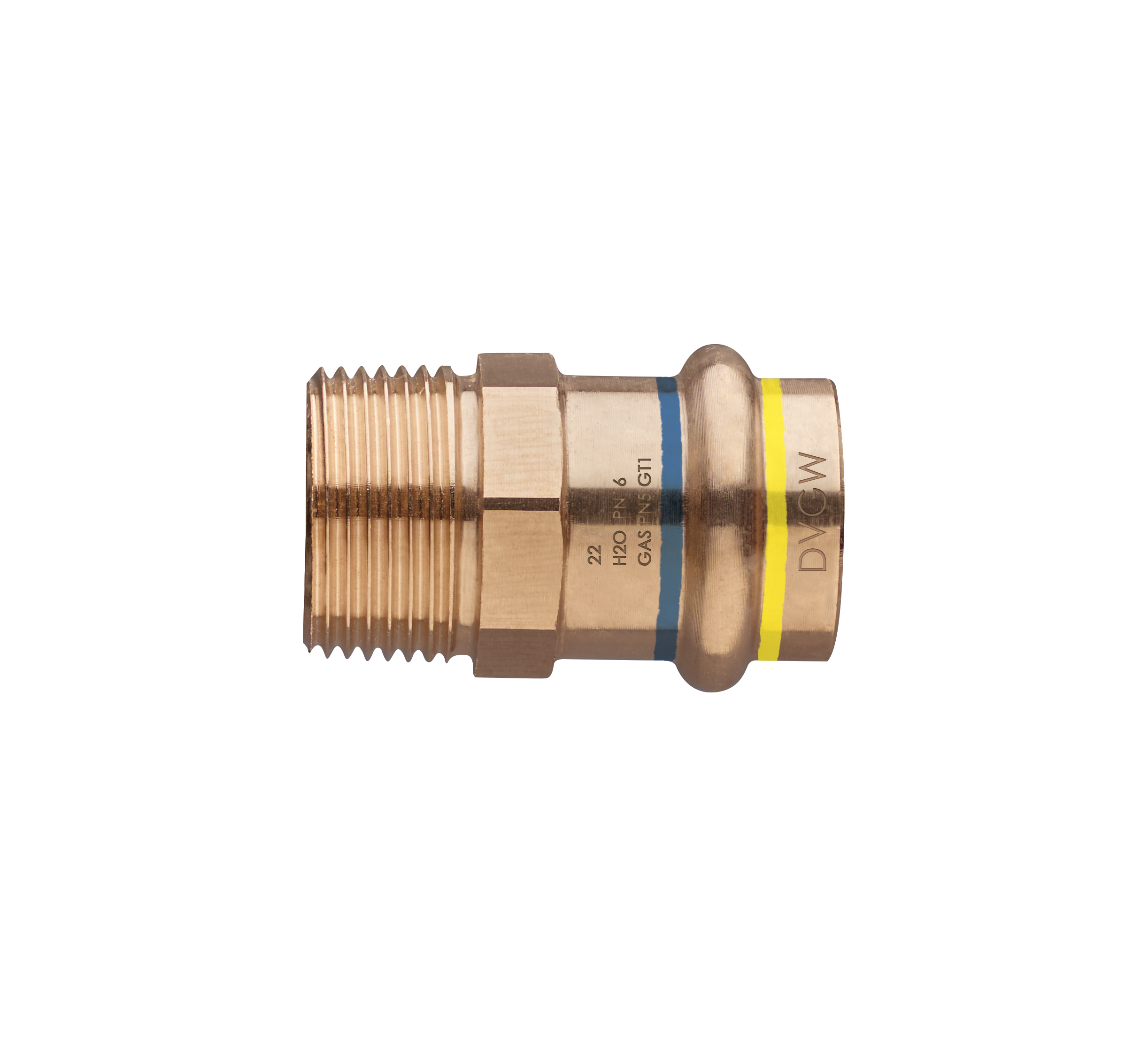

Manguito mixto H/rosca macho de bronce.

Especificaciones técnicas

d x R	BAG	MASTER BOX	CÓDIGO	L	S	Z
12 x 3/8"	10	250	RS8243A38012000	40	21	22
12 x 1/2"	10	200	RS8243A12012000	43	21	25
15 x 3/8"	10	200	RS8243A38015000	44	25	22
15 x 1/2"	10	150	RS8243A12015000	46	25	24
15 x 3/4"	10	100	RS8243A34015000	48	28	26
18 x 1/2"	10	150	RS8243A12018000	48	27	25
18 x 3/4"	10	100	RS8243A34018000	49	28	26
22 x 1/2"	10	100	RS8243A12022000	49	32	25
22 x 3/4"	10	100	RS8243A34022000	51	32	27
22 x 1"	5	70	RS8243B01022000	52	34	28
28 x 3/4"	5	70	RS8243A34028000	52	38	27
28 x 1"	5	50	RS8243B01028000	54	38	29
28 x 1"1/4	5	50	RS8243B14028000	58	42	33
35 x 1"	5	30	RS8243B01035000	58	46	32
35 x 1"1/4	5	40	RS8243B14035000	60	46	34
35 x 1"1/2	5	25	RS8243B12035000	60	48	34
42 x 1"1/4	5	20	RS8243B14042000	75	56	39
42 x 1"1/2	5	25	RS8243B12042000	75	56	39
54 x 1"1/2	1	15	RS8243B12054000	81	68	41
54 x 2"	1	10	RS8243C02054000	86	68	46
