RACCORDS A SERTIR A PROFILE V EN CUIVRE ET EN BRONZE

RZ8243

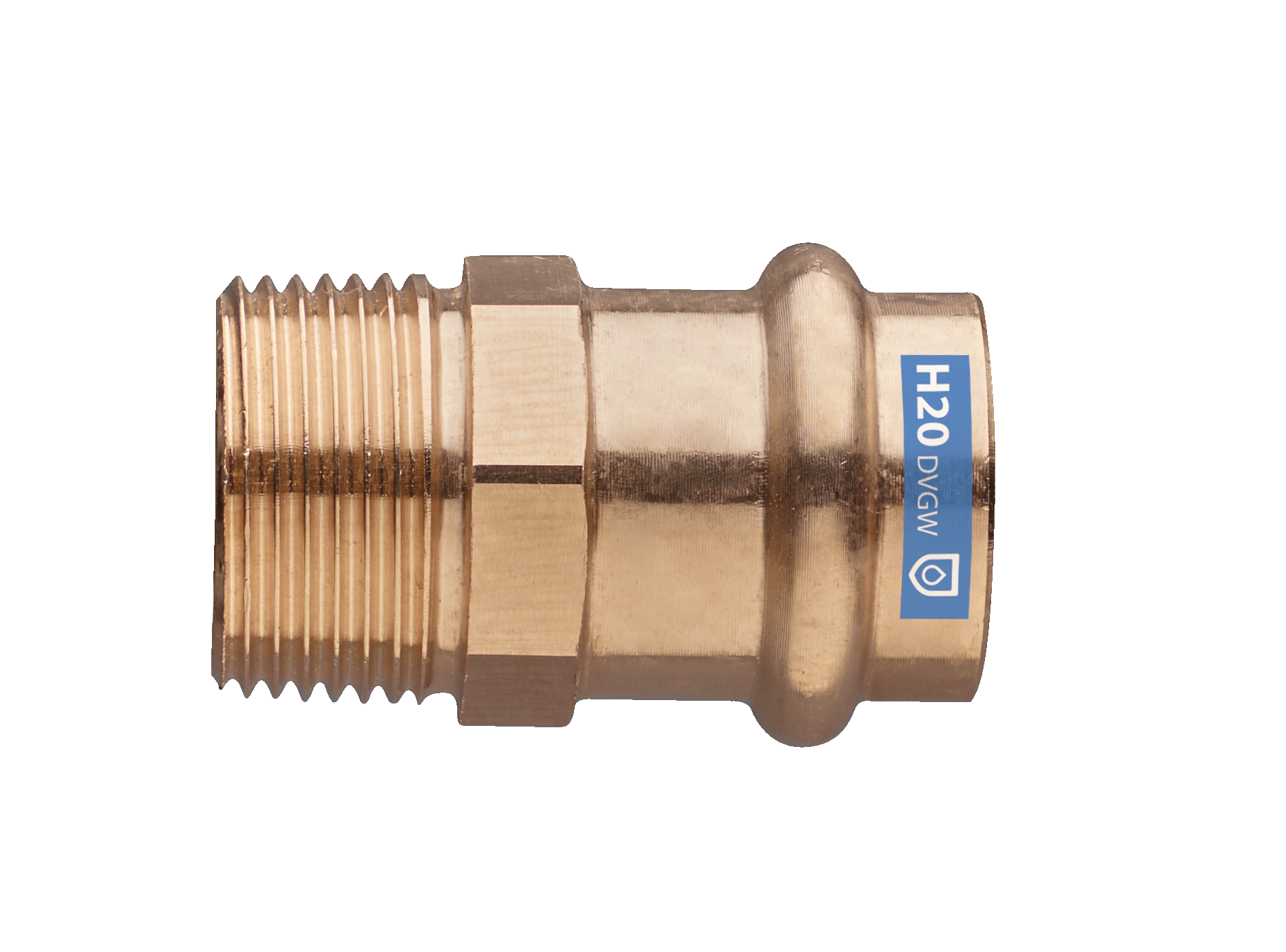

Manchon F/filetage mâle en bronze.

Spécifications techniques

d x R	BAG	MASTER BOX	CODE	L	S	Z
12 x 3/8"	10	250	RZ8243A38012000	40	21	22
12 x 1/2"	10	200	RZ8243A12012000	43	21	25
14 x 3/8"	10	200	RZ8243A38014000	44	25	22
14 x 1/2"	10	200	RZ8243A12014000	46	25	24
15 x 3/8"	10	200	RZ8243A38015000	44	25	22
15 x 1/2"	10	150	RZ8243A12015000	46	25	24
15 x 3/4"	10	100	RZ8243A34015000	48	28	26
16 x 1/2"	10	150	RZ8243A12016000	46	25	24
16 x 3/4"	10	100	RZ8243A34016000	48	28	26
18 x 1/2"	10	150	RZ8243A12018000	48	27	25
18 x 3/4"	10	100	RZ8243A34018000	49	28	26
22 x 1/2"	10	100	RZ8243A12022000	49	32	25
22 x 3/4"	10	100	RZ8243A34022000	51	32	27
22 x 1"	5	50	RZ8243B01022000	52	34	28
28 x 3/4"	5	70	RZ8243A34028000	52	38	27
28 x 1"	5	50	RZ8243B01028000	54	38	29
28 x 1"1/4	5	50	RZ8243B14028000	58	42	33
35 x 1"	5	30	RZ8243B01035000	58	46	32
35 x 1"1/4	5	40	RZ8243B14035000	60	46	34
35 x 1"1/2	5	25	RZ8243B12035000	60	48	34
42 x 1"1/4	5	20	RZ8243B14042000	75	56	39
42 x 1"1/2	5	25	RZ8243B12042000	75	56	39
54 x 1"1/2	1	15	RZ8243B12054000	81	68	41
54 x 2"	1	10	RZ8243C02054000	86	68	46

The big-size, item RB8243, is available.
