GALVANIZED CARBON STEEL M-PROFILE PRESSFITTINGS
/
CMF130
GALVANIZED CARBON STEEL M-PROFILE PRESSFITTINGS
CMF130
F/female thread/F tee.

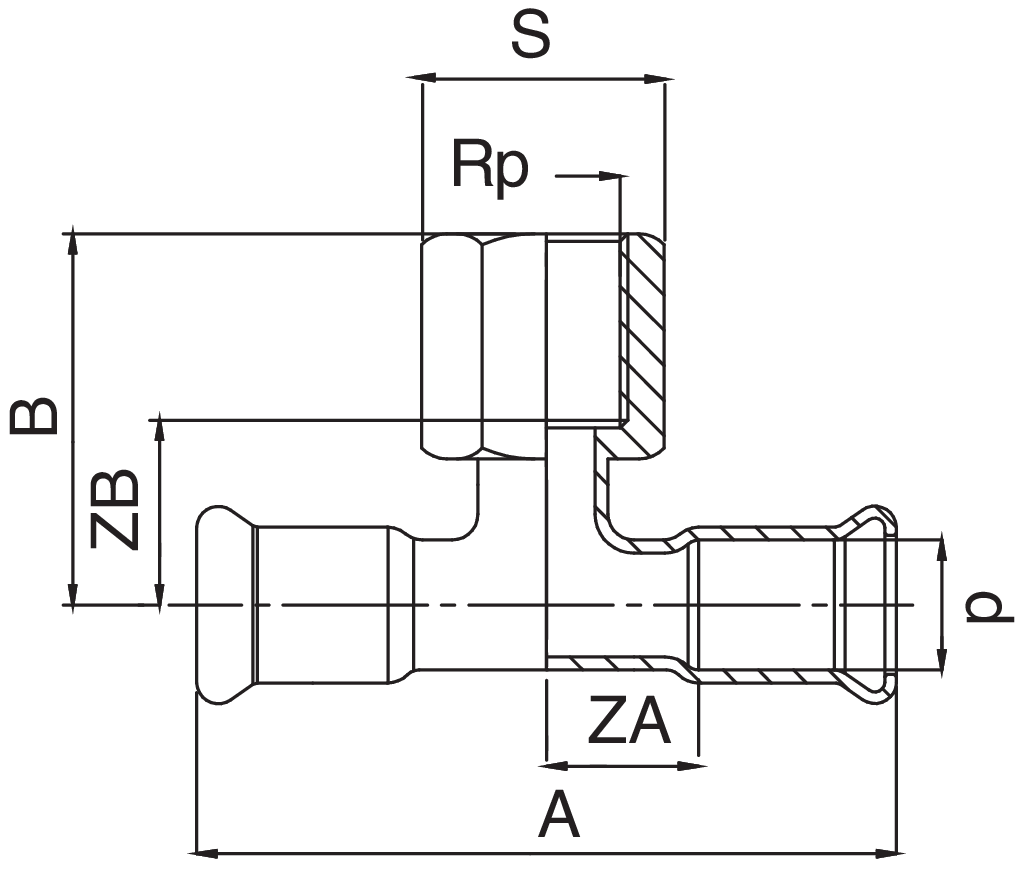

Technical specifications
d x Rp
BAG
MASTER BOX
CODE
A
B
S
ZA
ZB
15 x 1/2"
10
80
CMF130015A12015
74
39
26
21
-
18 x 1/2"
10
60
CMF130018A12018
80
37
26
21
-
22 x 1/2"
5
50
CMF130022A12022
82
39
26
20
-
22 x 3/4"
5
40
CMF130022A34022
82
41
31
20
-
28 x 1/2"
5
25
CMF130028A12028
92
37
26
24
-
28 x 3/4"
5
20
CMF130028A34028
92
45
31
24
-
28 x 1"
5
15
CMF130028B01028
92
46
37
24
-
35 x 1/2"
1
15
CMF130035A12035
102
43
26
26
-
35 x 3/4"
1
20
CMF130035A34035
102
49
31
26
-
35 x 1"
10
10
CMF130035B01035
102
57
37
26
-
42 x 1/2"
1
10
CMF130042A12042
118
47
26
30
-
42 x 3/4"
1
10
CMF130042A34042
118
52
31
30
-
42 x 1"
10
10
CMF130042B01042
118
60
37
30
-
54 x 1/2"
1
10
CMF130054A12054
140
53
26
36
-
54 x 3/4"
1
5
CMF130054A34054
140
58
31
36
-
