SISTEMA PRESSFITTING PROFILO V DI ACCIAIO INOSSIDABILE

ZXF130

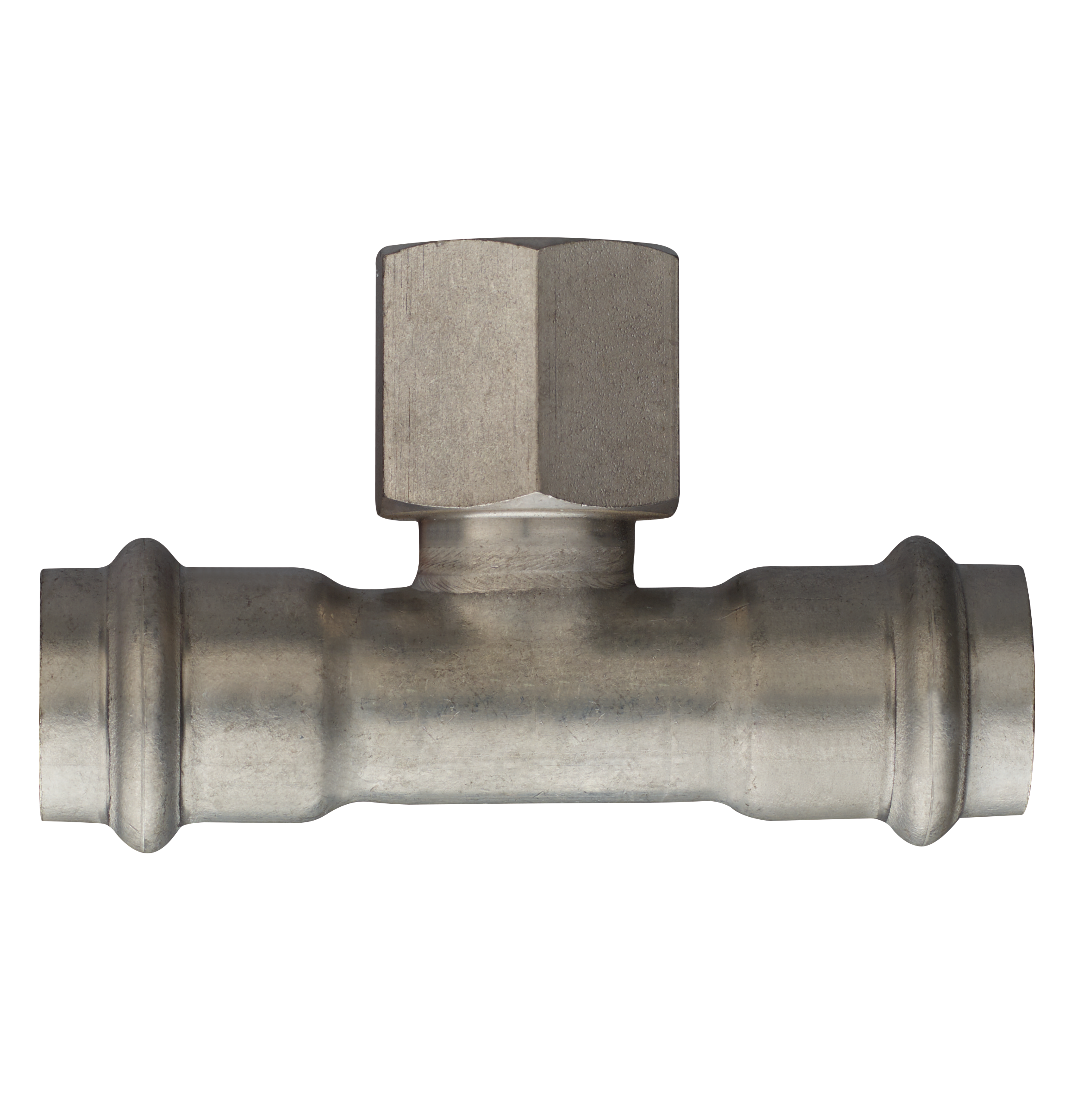

Raccordo a T femmina filettato femmina.

Specifiche tecniche

d x Rp	BAG	MASTER BOX	CODICE	L1	L2	S	Z1	Z2
15 x 1/2"	5	50	ZXF130015A12015	42	30	24	20	17
18 x 1/2"	5	30	ZXF130018A12018	46	31	24	23	18
18 x 3/4"	5	50	ZXF130018A34018	46	42	30	23	22
22 x 1/2"	5	25	ZXF130022A12022	49	33	24	25	20
22 x 3/4"	5	25	ZXF130022A34022	49	44	30	25	24
28 x 1/2"	5	25	ZXF130028A12028	56	36	24	31	23
28 x 3/4"	5	15	ZXF130028A34028	66	48	30	31	27
28 x 1"	5	15	ZXF130028B01028	60	53	38	31	28
35 x 1/2"	5	10	ZXF130035A12035	68	50	24	42	27
35 x 3/4"	1	15	ZXF130035A34035	68	51	30	42	31
35 x 1"1/4	1	10	ZXF130035B14035	68	54	50	42	28
42 x 1/2"	1	5	ZXF130042A12042	80	53	24	44	30
42 x 3/4"	1	10	ZXF130042A34042	80	54	30	44	34
42 x 1"1/2	1	5	ZXF130042B12042	80	51	55	44	32
54 x 1/2"	1	5	ZXF130054A12054	82	51	24	42	36
54 x 3/4"	1	5	ZXF130054A34054	92	60	30	42	40
54 x 2"	1	4	ZXF130054C02054	82	61	70	42	39
