COPPER AND BRONZE V-PROFILE PRESSFITTINGS

RZ9130

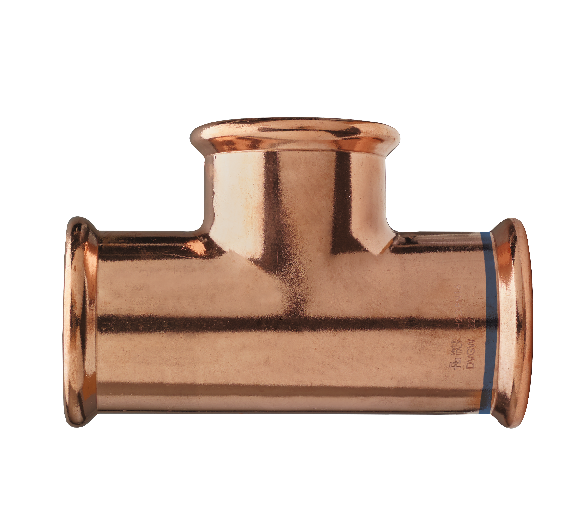

Copper F/F/F tee.

Technical specifications

d	BAG	MASTER BOX	CODE	L1	L2	Z1	Z2
12	10	150	RZ9130012012012	29	29	11	11
14	10	100	RZ9130014014014	41	33	19	11
15	10	100	RZ9130015015015	41	33	19	11
16	10	100	RZ9130016016016	41	33	19	11
18	10	80	RZ9130018018018	42	35	19	12
22	5	40	RZ9130022022022	45	39	21	15
28	5	35	RZ9130028028028	48	46	23	21
35	5	20	RZ9130035035035	53	48	27	22
42	1	10	RZ9130042042042	65	65	29	29
54	1	10	RZ9130054054054	75	75	35	35

The big-size, item RR9130, is available.
