GALVANIZED CARBON STEEL V-PROFILE PRESSFITTINGS

ZC0243

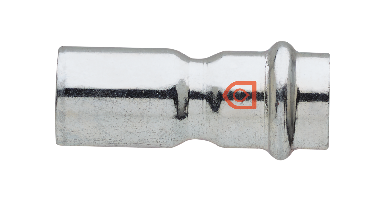

M/F reducer.

Technical specifications

d1 x d2	BAG	MASTER BOX	CODE	L	Z
15 x 12	10	50	ZC0243015012000	45	27
18 x 15	10	200	ZC0243018015000	74	52
22 x 12	10	50	ZC0243022012000	56	38
22 x 15	10	150	ZC0243022015000	57	35
22 x 18	10	150	ZC0243022018000	58	35
28 x 15	5	100	ZC0243028015000	59	37
28 x 18	10	100	ZC0243028018000	72	49
28 x 22	10	100	ZC0243028022000	69	45
35 x 18	5	50	ZC0243035018000	78	55
35 x 22	10	60	ZC0243035022000	74	50
35 x 28	10	50	ZC0243035028000	77	52
42 x 28	5	40	ZC0243042028000	97	72
42 x 35	5	40	ZC0243042035000	87	61
54 x 22	5	20	ZC0243054022000	112	88
54 x 28	5	20	ZC0243054028000	117	92
54 x 35	5	20	ZC0243054035000	111	85
54 x 42	5	20	ZC0243054042000	115	79
