CATALOGUE
/
ENDFEED FITTINGS
/
IMPERIAL SIZE SOLDER FITTINGS
/

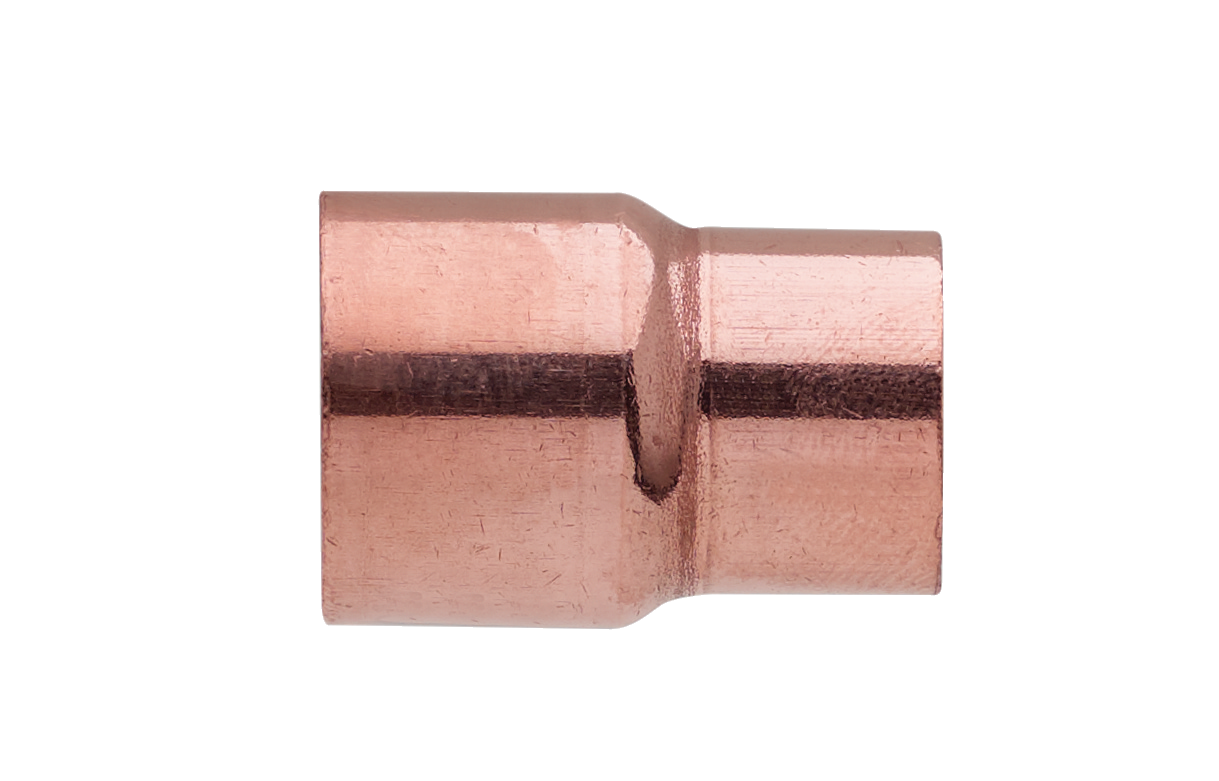

FR5240
IMPERIAL SIZE SOLDER FITTINGS
FR5240
F/F reducing coupling.

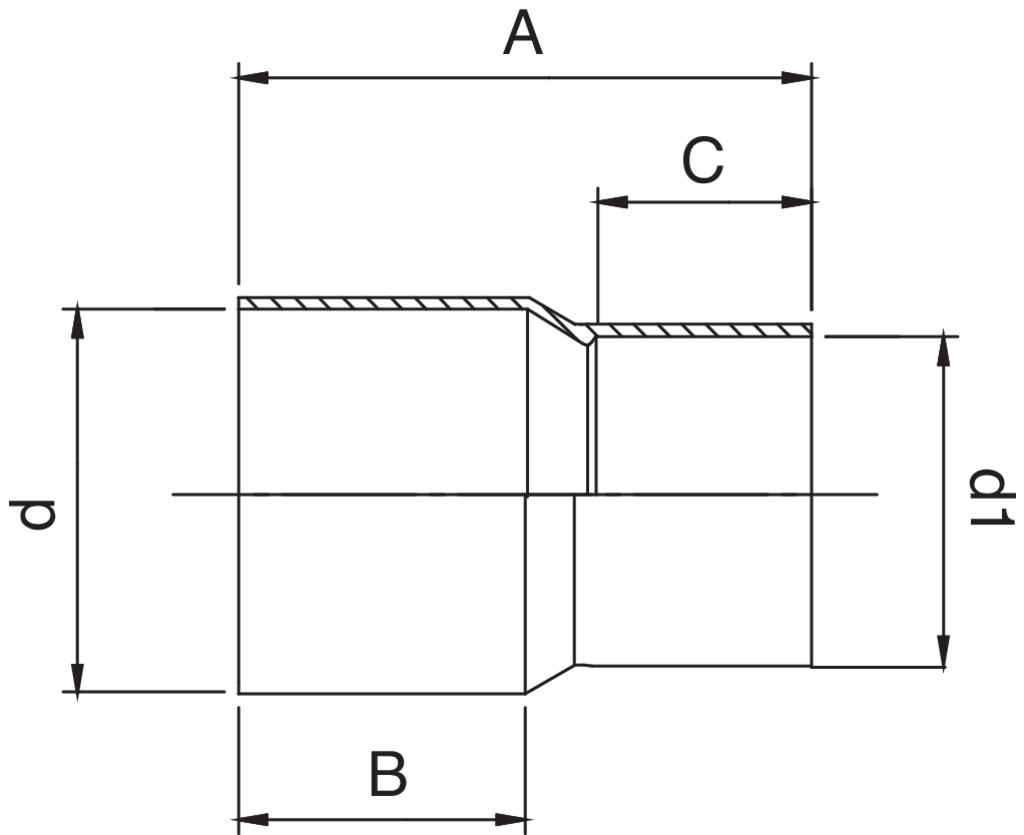

Technical specifications
d x d1
BAG
MASTER BOX
CODE
A
B min
C min
1/2" x 3/8"
10
500
FR5240A12A38000
21
9,7
7,9
5/8" x 1/2"
10
150
FR5240A58A12000
27
12,7
9,7
3/4" x 1/2"
10
50
FR5240A34A12000
30
15,8
9,7
3/4" x 5/8"
10
200
FR5240A34A58000
34
15,8
12,7
