CATALOGUE
/
ENDFEED FITTINGS
/
BRONZE SOLDER FITTINGS
/
B4096B
BRONZE SOLDER FITTINGS
B4096B

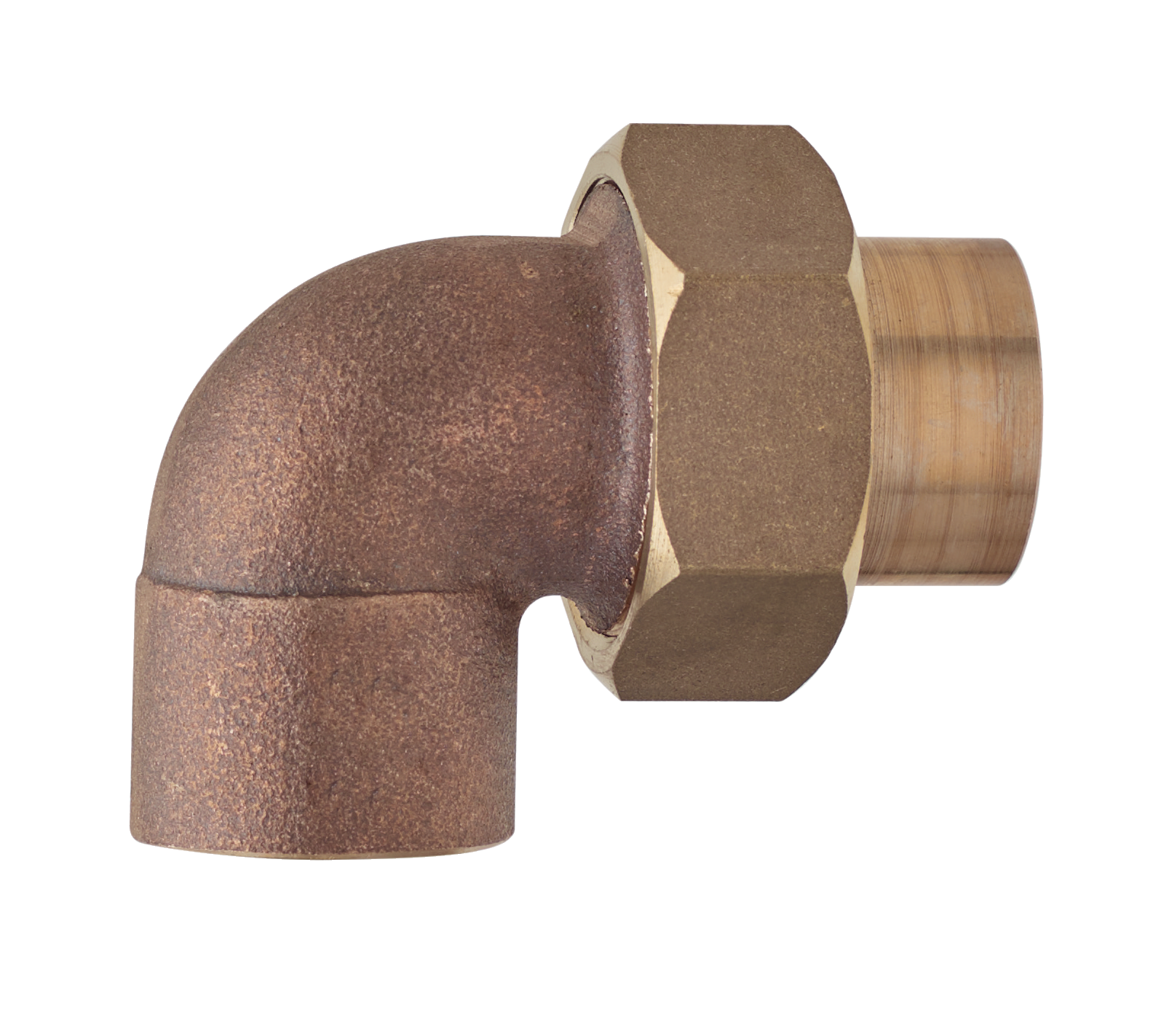

F/F 3-piece conical seat elbow.
Technical specifications
d x d
BAG
MASTER BOX
CODE
A
B
ZA
ZB
Ch
12 x 12
10
150
B4096B012012000
37,2
17,3
28,2
10
30
15 x 15
10
100
B4096B015015000
39,2
19,5
28,2
8,8
30
16 x 16
10
100
B4096B016016000
39,8
20
27,8
9
30
18 x 18
10
100
B4096B018018000
43,6
24,2
30,6
11,2
37
22 x 22
10
70
B4096B022022000
48,3
30,2
32,3
17
37
28 x 28
10
50
B4096B028028000
58
35,4
39
17
46
35 x 35
5
10
B4096B035035000
70,6
44,5
44,6
18,5
52
