KUPFER UND ROTGUSS PRESSFITTINGS

RS8130

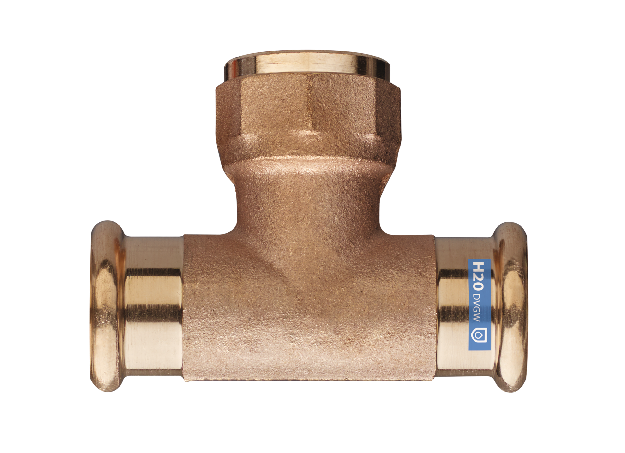

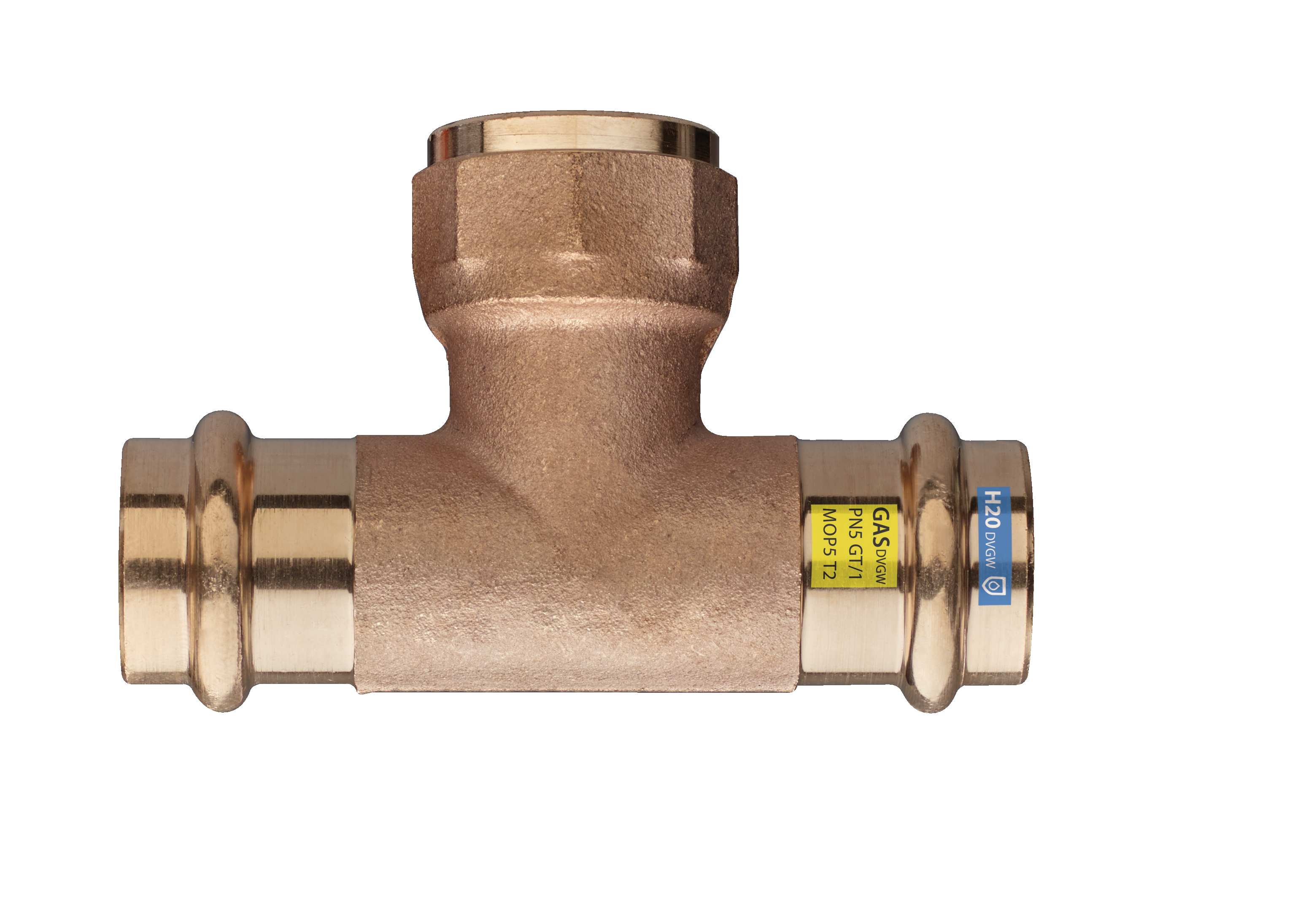

T-Stück mit I Gewinde aus Rotguss.

Technische Spezifikationen

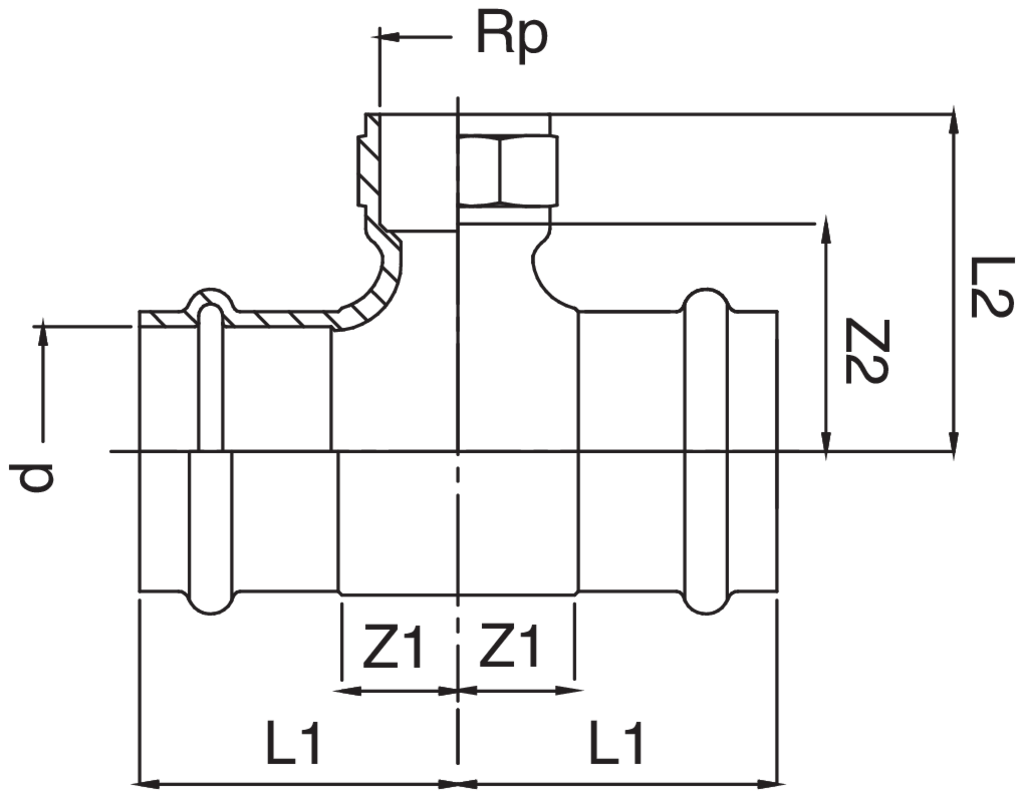

d x Rp	BAG	MASTER BOX	CODE	L1	L2	Z1	Z2
12 x 1/2"	10	100	RS8130012A12012	44	23	26	13
15 x 3/8"	10	80	RS8130015A38015	43	22	21	12
15 x 1/2"	10	80	RS8130015A12015	45	23	23	13
18 x 1/2"	10	60	RS8130018A12018	47	24	24	14
22 x 1/2"	5	50	RS8130022A12022	48	25	24	15
22 x 3/4"	5	40	RS8130022A34022	53	31	29	16
28 x 1/2"	5	25	RS8130028A12028	53	50	28	35
28 x 3/4"	5	20	RS8130028A34028	53	50	27	35
28 x 1"	5	25	RS8130028B01028	56	35	30	20
35 x 1/2"	5	20	RS8130035A12035	49	38	23	23
42 x 1/2"	1	10	RS8130042A12042	55	50	19	35
54 x 1/2"	1	5	RS8130054A12054	67	54	27	39
