KATALOG
/
GEWINDEFITTINGS
/
ROTGUSS GEWINDEFITTINGS
/

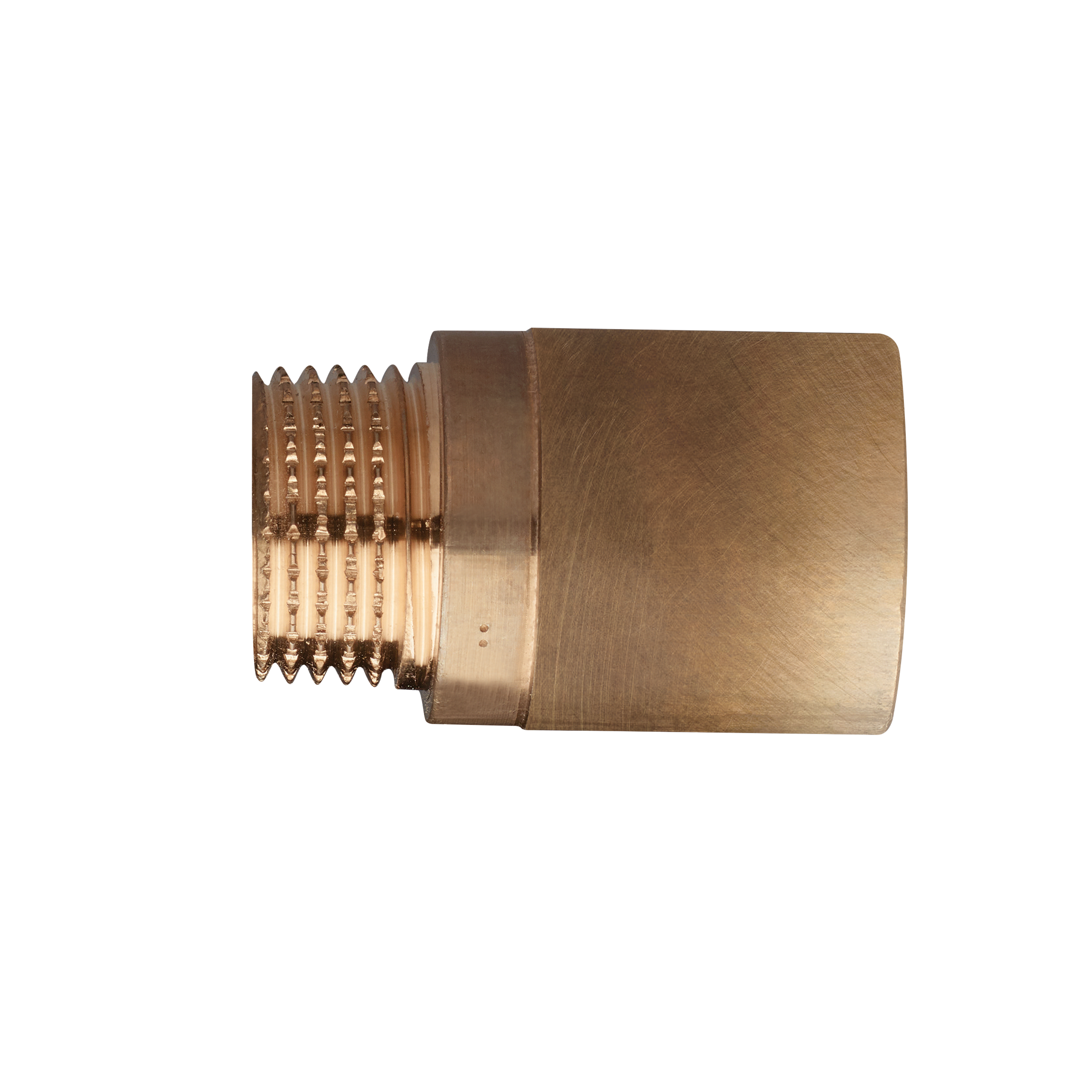

RB3525
ROTGUSS GEWINDEFITTINGS

RB3525

Verlängerung mit AxI Gewinde.
Technische Spezifikationen

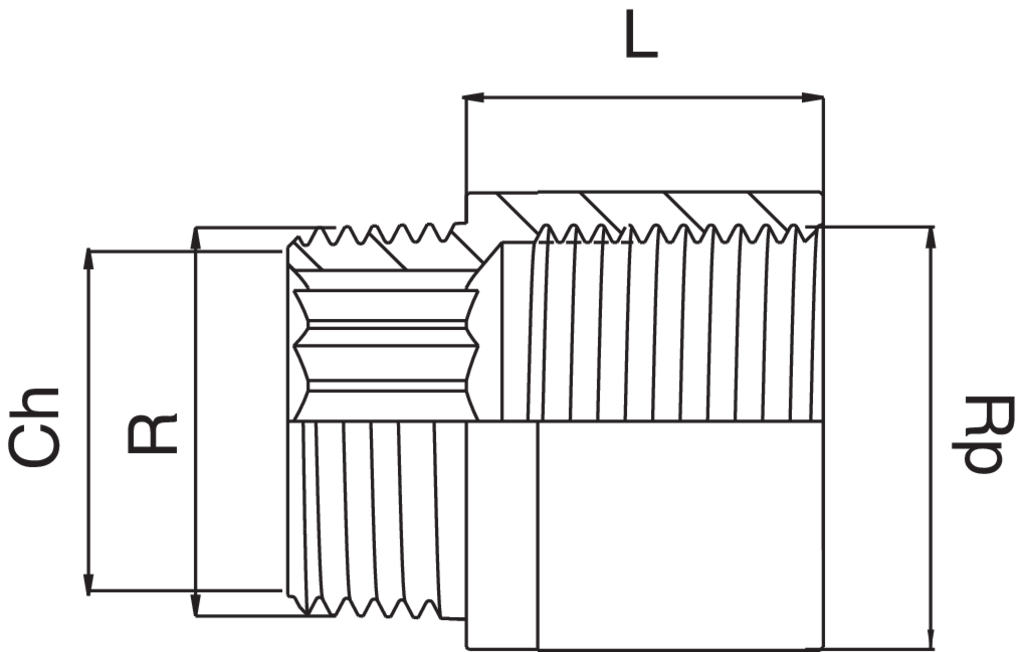

L x Rp x R BAG MASTER BOX CODE Ch
10 x 3/8" x 3/8" 5 250 RB3525A38010000 10
10 x 1/2" x 1/2" 10 150 RB3525A12010000 12
10 x 3/4" x 3/4" 10 100 RB3525A34010000 17
12,5 x 1/2" x 1/2" 10 150 RB3525A1212M000 12
12,5 x 3/4" x 3/4" 10 100 RB3525A3412M000 17
15 x 3/8" x 3/8" 5 250 RB3525A38015000 10
15 x 1/2" x 1/2" 10 150 RB3525A12015000 12
15 x 3/4" x 3/4" 10 100 RB3525A34015000 17
15 x 1" x 1" 5 50 RB3525B01015000 22
17,5 x 1/2" x 1/2" 10 150 RB3525A1217M000 12
20 x 3/8" x 3/8" 5 200 RB3525A38020000 10
20 x 1/2" x 1/2" 10 150 RB3525A12020000 12
20 x 3/4" x 3/4" 10 100 RB3525A34020000 17
20 x 1" x 1" 5 50 RB3525B01020000 22
20 x 1"1/4 x 1"1/4 10 30 RB3525B14020000 27
25 x 3/8" x 3/8" 5 200 RB3525A38025000 10
25 x 1/2" x 1/2" 10 150 RB3525A12025000 12
25 x 3/4" x 3/4" 10 100 RB3525A34025000 17
25 x 1" x 1" 5 50 RB3525B01025000 22
25 x 1"1/4 x 1"1/4 10 30 RB3525B14025000 27
30 x 3/8" x 3/8" 5 150 RB3525A38030000 10
30 x 1/2" x 1/2" 10 100 RB3525A12030000 12
30 x 3/4" x 3/4" 5 70 RB3525A34030000 17
30 x 1" x 1" 5 50 RB3525B01030000 22
30 x 1"1/4 x 1"1/4 10 30 RB3525B14030000 27
35 x 1/2" x 1/2" 5 100 RB3525A12035000 12
40 x 3/8" x 3/8" 5 150 RB3525A38040000 10
40 x 1/2" x 1/2" 10 100 RB3525A12040000 12
40 x 3/4" x 3/4" 5 50 RB3525A34040000 17
40 x 1" x 1" 5 40 RB3525B01040000 22
40 x 1"1/4 x 1"1/4 10 20 RB3525B14040000 27
45 x 1/2" x 1/2" 10 100 RB3525A12045000 12
50 x 3/8" x 3/8" 5 150 RB3525A38050000 10
50 x 1/2" x 1/2" 5 50 RB3525A12050000 12
50 x 3/4" x 3/4" 5 40 RB3525A34050000 17
50 x 1" x 1" 5 40 RB3525B01050000 22
50 x 1"1/4 x 1"1/4 10 20 RB3525B14050000 27
65 x 3/8" x 3/8" 5 100 RB3525A38065000 10
65 x 1/2" x 1/2" 5 50 RB3525A12065000 12
65 x 3/4" x 3/4" 5 30 RB3525A34065000 17
65 x 1" x 1" 5 30 RB3525B01065000 22
80 x 3/8" x 3/8" 5 100 RB3525A38080000 10
80 x 1/2" x 1/2" 5 50 RB3525A12080000 12
80 x 3/4" x 3/4" 5 30 RB3525A34080000 17
80 x 1" x 1" 5 20 RB3525B01080000 22
100 x 3/8" x 3/8" 5 50 RB3525A38100000 10
100 x 1/2" x 1/2" 5 30 RB3525A12100000 12
100 x 3/4" x 1'' 5 30 RB3525A34100000 17
100 x 1" x 1" 5 20 RB3525B01100000 22
120 x 1/2" x 1/2" 5 30 RB3525A12120000 12
150 x 1/2" x 1/2" 5 30 RB3525A12150000 12
180 x 1/2" x 1/2" 5 30 RB3525A12180000 12
