Technische Spezifikationen

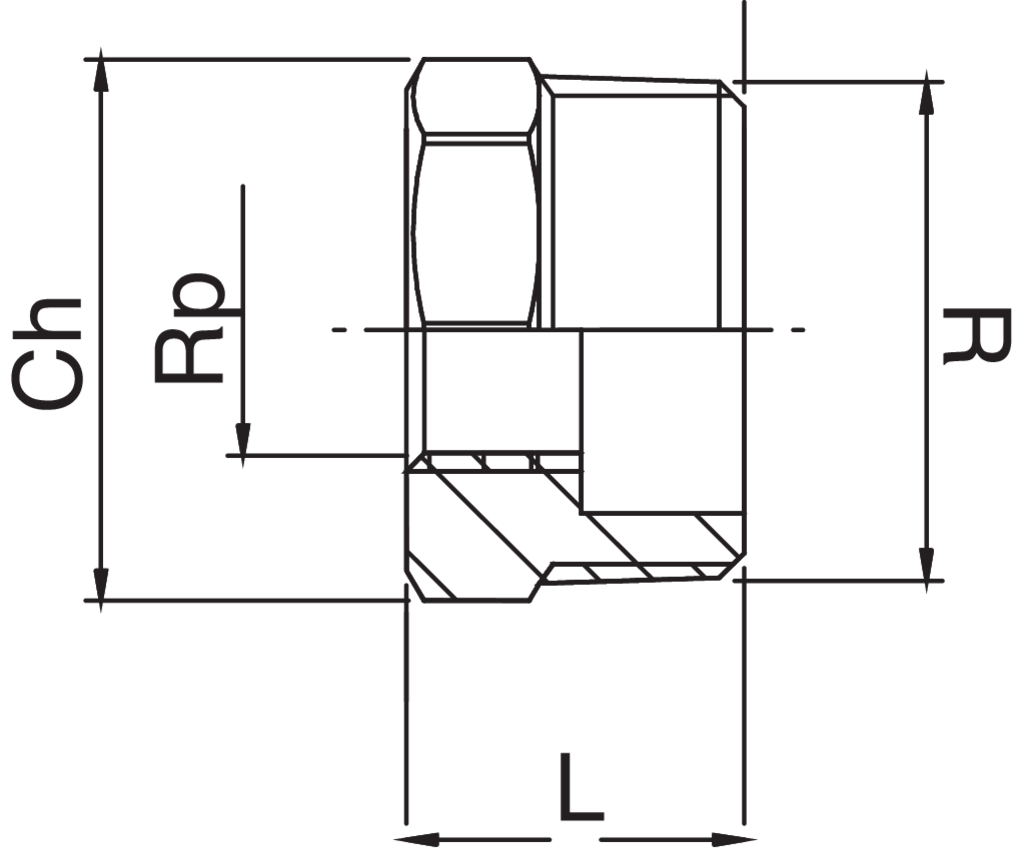

R x Rp BAG MASTER BOX CODE Ch L
3/8" x 1/4" 10 200 RB3241A38A14000 17 16
1/2" x 1/4" 10 400 RB3241A12A14000 21 18
1/2" x 3/8" 10 400 RB3241A12A38000 21 18
3/4" x 3/8" 10 200 RB3241A34A38000 27 21
3/4" x 1/2" 10 200 RB3241A34A12000 27 21
1" x 3/8" 10 100 RB3241B01A38000 34 25
1" x 1/2" 10 150 RB3241B01A12000 34 25
1" x 3/4" 10 150 RB3241B01A34000 34 25
1"1/4 x 3/4" 5 70 RB3241B14A34000 42 28
1"1/4 x 1" 5 60 RB3241B14B01000 42 28
1"1/2 x 3/4" 5 50 RB3241B12A34000 48 30
1"1/2 x 1" 5 50 RB3241B12B01000 48 30
1"1/2 x 1"1/4 5 70 RB3241B12B14000 48 30
2" x 1"1/4 5 30 RB3241C02B14000 60 37
2" x 1"1/2 5 20 RB3241C02B12000 60 37
2"1/2 x 2" 1 100 RB3241C12C02000 76 41
